Hi,
please can you help me to configure Progdvb free x86 with an unicable LNB?
I need to use channel 3 or 4, because channel 1 and channel 2 are already used.

Regards
Antonio

TV Sources->Add switch -> multi switch?

I cannot force my unicable converter to work properly.
It is Inverto IDLU-QUDL42-UNR2L-1PP with 4 fequencies : 1 - 1680 MHz , 2 - 1420 MHz, 3 - 2040 MHz, 4 - 1210 MHz.
My card is TBS 6902.

By manipulaton with LOF, I can get signal from one transponder.
For example 11508 - LOF(10088) = 1420.

Please help me with settings.

I can check and anewer after 8.8

Thank you,

If it can help, I've checked if my card or LNB are not broken.
Here my setting which works in another program.
Also 22 KHz setting must be "Controlled by LOF-SW". Without this setting, I was able to reach only 11700 (LOF-SW) frequency.

Hi,

Did you have a chance to try if Unicable works?
I cannot try with recent 7.20.4 because my trial has expired.

Sorry. Still not ready. Please send me more information about unicable and unicable paparms.

I'm not unicable protocol specialist. I have one cable installation with Inverto IDLU-QUDL42-UNR2L-1PP LNB (http://www.inverto.tv/products/product.php?id=358) which, according to specification uses DiSEqC command extension based on EN-50494. It means that I have average consumer product.
My tuners are Ferguson Ariva 253 Combo (it uses IF 1210 and works great) and TBS 6902 Twin Tuner PC Card.

So far I have tested DVB Dream, DVB Viewer, DVB Link.
Although DVB Link has unicable configuration, I coudn't make it working.
DVB Dream support only one device per instance and works with unicable.
DVB Viewer supports twin tuner and unicable, however refuses to work with PIP and ACamd or WinCSC.
Unicable configurations in DVB Dream and DVB Viewer are easy. Such kind of simplicity I would like to have in ProgDVB.

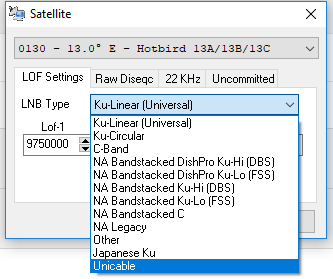

DVB Dream

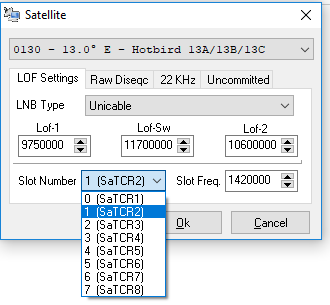

1. Select LNB type 2. Select slot fequency. My LNB has 4 IF channels. 1210, 1420, 1680, 2040. As 1210 is already assigned Ferguson Arriva, I select 1420 here. DVB Viewer:
1. You have to select device then LNB. There is no Unicable configuration in this step. Just Ku-linear/universal
2. Go to option and cllick Unicable button. 3. Provide slot fequency. Again I select 1420.

Above configurations bind tuner to slot frequency. My configuration would be: Ariva 253 -> 1210; TS6902 tuner 1 -> 1420; TS6902 tuner 2 -> 1680.

I am still collect information about unicable realization.
