AnalogTuner.device

#2
Sorry, with the only analogue source I have, the old FAST AVMaster, it won't work.

Conditions:
Win98SE (no 2k / XP driver exists)
ProgDVB4.84.1W9x
FAST AVMaster VxD / VfW software / driver 2.5
(fastavm.vxd 2.0.501 ///FAST Multimedia Inc.
mmdevldr.vxd 4.10.1998 Microsoft Corp.)

Device is found (AV Master Driver in - AnalogTuner.device)
Support: Options dialog
But then PROGDVBENGINE reports:
"Device not started !
(AV Master Driver in)"

Well, I am not really wondering, as it's a VxD based old MJPEG hardware (Philips SAA7142) based video capture and playout card.
This means, i can't test under Win2000 or XP, no working driver exists :cry:

So, please don't take this as an error report.
Suppose, that classical hardware will only work with original software (FAST Capture), VirtualDub and other old style capturer interfaces, as before.

Perhaps you should publish basic info on what it should do and work with / under and what not ;)
What OS
What version(s) of ProgDVB
What other conditions on architecture, video interface (in / out), VGA overlay / surface / software mode or whatever else...
What usability (life view / file play / record / timeshift / combination with DVB cards in HW or SW mode...)

Sorry, have to leave and reboot now, as it created a permanent error at closing of ProgDVB:
Modul KERNEL32.DLL bei 019f:bff9dc19.
Register:
EAX=c0030c04 CS=019f EIP=bff9dc19 EFLGS=00010216
EBX=03cafe28 SS=01a7 ESP=03bafd84 EBP=03bb0020
ECX=00000000 DS=01a7 ESI=00000000 FS=51af
EDX=bff76855 ES=01a7 EDI=bff79198 GS=0000
Bytes bei CS:EIP:
53 8b 15 e4 dc fc bf 56 89 4d e4 57 89 4d dc 89
Stapelwerte:
p.s.
Back to normal now.
But I will stop playing around now.
Will be going for a more modern video capturer anyway, once I have some money available for a nice one.

Perhaps someone else here to continue, for the moment?
My signature:

Please read here:
On Bug Reports And Other Complaints
and there:
BOARD RULES - READ THIS!



I don't give support by e-mail or PM.

And I will never assist on PayTV hacking.
PM ME FOR THIS AND YOUR ACCOUNT WILL BE DELETED IMMEDIATELY, WITHOUT ANY WARNING!!!

NEVER EVER DARE TO CONTACT ME FOR PRO VERSION ISSUES!
I am not responsible for that.
Check the 'Activation' section.

Please keep it in English here, or Russian in the Russian section, or German in the German section.

I don't read nor write Klingonian or any other language than English and German.
Addressing me personally in any exotic language will be treated as severe insulting! Be warned!!!


1.)AMD Phenom II x4 940, GA-MA770-UD3, 8 GB DDR2-6400. 7 Pro SP1 x64 + XP Pro SP3 x86
DVB-S2: Cynergy S2 USB HD
2.)P4 3200 i865G (F-S Scenic W600pwr) XP Pro SP3
DVB-S: hauppauge WinTV Nexus-S rev. 2.2, driver TT 2.19h, hardware mode

19.2°,13°,28.x°E,30°W, DiSEqC 1.0


Auf Deutsch:
DVB-Cube <<< Das deutsche DVB-Forum >>>

#3
i Use thi file in module:
boot\
BDA.Device
EPG.Module
Nova_USB.Device
Options.ini
PMS_Channels.dat
Scheduler.Alx
Scheduler.ini
Scheduler.Module
ttBdaDrvApi_Dll.dll
ttusbacc.dll

what i must to use to try analog module?
i have a hibryd terratec.
ty.

Re: .

#9
In Module dir i have this:
AnalogTuner.device_copy_1
Prog wrote:Please enable loging in options of AnaligTuner module and send me log.
how to?
I not have a AnaligTuner module but a "Receiving video from analog input" device. Your property are inaccessible.
PS: Of course you must have mpeg2 encoder.
Do you main as dvb tv?

#13

Code: Select all

Filter  Cinergy Hybrid T USB XS (Analog)
Pin (1) Acquisizione dir = output
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
Pin (2) Video analogico in ingresso dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (3) VBI dir = output
-- type {F72A76E1-EB0A-11D0-ACE4-0000C0CC16BA}, sybtype {CA20D9A0-3E3E-11D1-9BF9-00C04FBBDEBF}
-- type {F72A76E1-EB0A-11D0-ACE4-0000C0CC16BA}, sybtype {CA20D9A0-3E3E-11D1-9BF9-00C04FBBDEBF}
Corssbars in system
-- Cinergy Hybrid T USB XS Analog Crossbar
StreamingTV in system
-- Cinergy Hybrid T USB XS Analog Tuner
StreamingAud in system
-- Cinergy Hybrid T USB XS Analog TV Audio
SysAud in system
-- Realtek AC97 Mixer
-- Realtek AC97 Audio
-- UplinkTopology
-- Uplink
-- Frazionatore audio del kernel Microsoft
-- Eliminatore di eco acustico del kernel Microsoft
-- Sintetizzatore Wavetable GS kernel Microsoft
-- Sintetizzatore DLS Microsoft Kernel
-- Mixer wave audio del kernel Microsoft
-- Decodificatore audio DRM del kernel Microsoft
-- USB Speakers
Selected StreamingTV  Cinergy Hybrid T USB XS Analog Tuner
Filter  Cinergy Hybrid T USB XS Analog Tuner
Pin (1) Analog Video dir = output
Pin (2) Analog Audio dir = output
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Selected Streaming Audio  Cinergy Hybrid T USB XS Analog TV Audio
Filter  Cinergy Hybrid T USB XS Analog TV Audio
Pin (1) TVAudio In dir = input
Pin (2) TVAudio Out dir = output
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Selected Crossbar  Cinergy Hybrid T USB XS Analog Crossbar
Filter  Cinergy Hybrid T USB XS Analog Crossbar
Pin (1) 0: Video Tuner In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (2) 1: Video Composite In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (3) 2: Video SVideo In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (4) 3: Audio Tuner In dir = input
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (5) 4: Audio Line In dir = input
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (6) 0: Video Decoder Out dir = output
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
No sys. audio in system
Error
FindMPEG2Filters() Error to initialize FindMPEG2Filters
ty

#15
AVerTV Studio 305
ProgDVB Pro 5.14.4
InterVideo Video Encoder 3.1.6.0
InterVideo Audio Encoder 3.1.6.0

When I tried to enable device, I got following error messages:
Error to get base filter
Filter not created. View log to details.

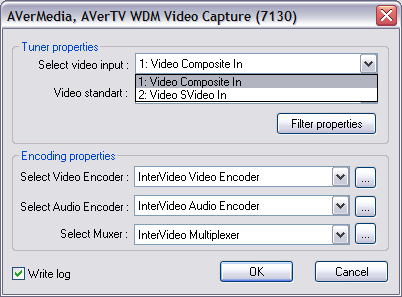

Properties dialog box:
Video Tuner is not available as video source, Composite or SVideo only.
SECAM-D also not available in the dropdown menu.
http://www.adslclub.ru/upload/data/2008 ... _18248.png
http://www.adslclub.ru/upload/data/2008 ... _65530.png

Code: Select all

Filter  AVerMedia, AVerTV WDM Video Capture (7130)
Pin (1) Capture dir = output
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {59565955-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7C-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7D-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7E-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {39555659-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {30323449-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7D-524F-11CE-9F53-0020AF0BA770}
Pin (2) Preview dir = output
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {59565955-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7C-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7D-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7E-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {50313459-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {39555659-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32315659-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {30323449-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7D-524F-11CE-9F53-0020AF0BA770}
Pin (3) VBI dir = output
-- type {F72A76E1-EB0A-11D0-ACE4-0000C0CC16BA}, sybtype {CA20D9A0-3E3E-11D1-9BF9-00C04FBBDEBF}
-- type {F72A76E1-EB0A-11D0-ACE4-0000C0CC16BA}, sybtype {CA20D9A0-3E3E-11D1-9BF9-00C04FBBDEBF}
-- type {F72A76E1-EB0A-11D0-ACE4-0000C0CC16BA}, sybtype {CA20D9A0-3E3E-11D1-9BF9-00C04FBBDEBF}
Pin (4) Audio dir = output
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {00000001-0000-0010-8000-00AA00389B71}
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {00000001-0000-0010-8000-00AA00389B71}
Pin (5) Analog Video In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (6) Analog Audio In dir = input
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Corssbars in system
-- Cap7134 Crossbar
StreamingTV in system
-- PhTVTune
StreamingAud in system
-- Cap7134 TV Audio
SysAud in system
-- AVerMedia, AVerTV WDM Video Capture (7130)
-- SoundMAX Digital Audio
-- SoundMAX Digital Audio
-- Microsoft Kernel Audio Splitter
-- Microsoft Kernel Acoustic Echo Canceller
-- Microsoft Kernel GS Wavetable Synthesizer
-- Microsoft Kernel DLS Synthesizer
-- Analog Devices Kernel wavetable Synth
-- Microsoft Kernel Wave Audio Mixer
-- Microsoft Kernel DRM Audio Descrambler
Selected StreamingTV  PhTVTune
Filter  PhTVTune
Pin (1) Analog Video dir = output
Pin (2) Analog Audio dir = output
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Selected Streaming Audio  Cap7134 TV Audio
Filter  Cap7134 TV Audio
Pin (1) TVAudio In dir = input
Pin (2) TVAudio Out dir = output
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Selected Crossbar  Cap7134 Crossbar
Filter  Cap7134 Crossbar
Pin (1) 0: Video Tuner In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (2) 1: Video Composite In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (3) 2: Video SVideo In dir = input
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (4) 3: Audio Tuner In dir = input
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (5) 4: Audio Line In dir = input
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (6) 5: Audio Line In dir = input
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (7) 0: Video Decoder Out dir = output
-- type {0482DDE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Pin (8) 1: Audio Decoder Out dir = output
-- type {0482DEE1-7817-11CF-8A03-00AA006ECB65}, sybtype {E436EB8E-524F-11CE-9F53-0020AF0BA770}
Selected Sys. audio  AVerMedia, AVerTV WDM Video Capture (7130)
Filter  AVerMedia, AVerTV WDM Video Capture (7130)
Error
pMoniker->BindToObject(NULL, NULL, IID_IBaseFilter, (VOID**)&pFilter) Error to get base filter
Filter not created -  AVerMedia, AVerTV WDM Video Capture (7130)
Error
-1 Filter not created. View log to details.
Filter  InterVideo Multiplexer
Pin (1) Input0 dir = input
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {00000050-0000-0010-8000-00AA00389B71}
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {E436EB81-524F-11CE-9F53-0020AF0BA770}
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {E06D802B-DB46-11CF-B4D1-00805F6CBBEA}
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {E06D8032-DB46-11CF-B4D1-00805F6CBBEA}
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {E06D802C-DB46-11CF-B4D1-00805F6CBBEA}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E06D8026-DB46-11CF-B4D1-00805F6CBBEA}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB81-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E06D802D-DB46-11CF-B4D1-00805F6CBBEA}
Pin (2) Output0 dir = output
-- type {ED0B916A-044D-11D1-AA78-00C04FC31D60}, sybtype {E06D8022-DB46-11CF-B4D1-00805F6CBBEA}
-- type {E436EB83-524F-11CE-9F53-0020AF0BA770}, sybtype {E06D8022-DB46-11CF-B4D1-00805F6CBBEA}
-- type {E436EB83-524F-11CE-9F53-0020AF0BA770}, sybtype {00000000-0000-0000-0000-000000000000}
Filter  InterVideo Audio Encoder
Pin (1) Audio In dir = input
-- type {73647561-0000-0010-8000-00AA00389B71}, sybtype {00000001-0000-0010-8000-00AA00389B71}
Pin (2) Audio Out dir = output
Filter  InterVideo Video Encoder
Pin (1) Video In dir = input
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {50931D6A-7269-4ED3-A5A6-90E3392A69B0}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {56595559-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {59565955-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {59555956-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {32315659-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {30323449-0000-0010-8000-00AA00389B71}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7E-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7C-524F-11CE-9F53-0020AF0BA770}
-- type {73646976-0000-0010-8000-00AA00389B71}, sybtype {E436EB7D-524F-11CE-9F53-0020AF0BA770}
Pin (2) Video Out dir = output
cron
